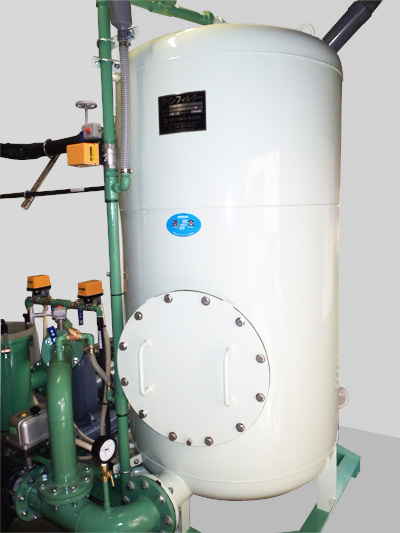

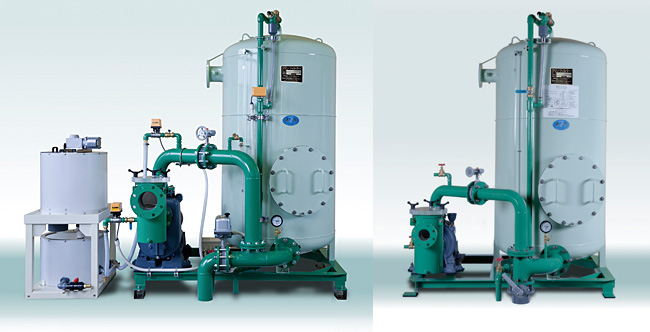

Diatomite Filter System

Diatomite Filter System
 The diatomite filter system offers the highest performance among the three major methods listed above.    Our original inner pre-coating method allows reduced drive load  ( normally one rank of filtering pump power can be reduced) thanks to diatomite filtration inside the filter.  This creates a larger filtering area, thereby reducing  operation costs and requiring less tank thickness.  Stainless steel is the standard tank material this system.
Characteristics
  • Stainless steel is standard for the tank and basement
  • Our original inner pre-coating
  • 20 sq. meter filtering area
  • Filtering capacity: 60 cubic meters/hour
  • Reduction of operation cost, especially electricity. For example, at 60cubic meters/hour, our consumption of electricity is 3.7kw compared to 5.5kw of other systems
  • Automatic model has liquid crystal touch panel.
Works
Junior high school 25m pool in tokyo H24.4.1

Main expendables for this system
Filters, Filter hunger, operation valve, clack valve, chlorination supply parts, bearing, packing items, etc.
Model
P-030ME〜120ME、P-030M〜120M

Purposes

  • Circulation and Filtering for Swimming Pool Water

Automatic
ModelItem Filtering
Capacity
Filtering
Area
Power
(pump)
Piping Installation
Spaces
Weight
(under operation)
kW in × out(mm) depth x width x height(cm) kg
m³/h
P-030ME ~30 10 2.2 65×100 305×355×250 2,020
P-040ME ~40 15 2.2 80×100 305×355×250 2,020
P-060ME ~75 20 3.7 100×100 305×355×250 2,100
P-090ME ~90 25 5.5 125×125 315×365×250 2,300
P-120ME ~120 32.5 7.5 125×125 325×435×275 2,930
Manual
ModelItem Filtering
Capacity
Filtering
Area
Pump Piping Installation
Spaces
Weight
(under operation)
kW in × out(mm) depth x width x height(cm) kg
m³/h
P-030M ~30 10 1.5 65×100 265×255×235 1,800
P-040M ~48 15 2.2 80×100 265×255×235 1,820
P-060M ~75 20 3.7 100×100 265×255×235 1,900
P-090M ~90 25 5.5 125×125 305×275×235 2,100
P-120M ~120 32.5 7.5 125×125 305×335×275 2,600
AQUA PRODUCT is a leading swimming pool designer/builder in Japan with over 40 years experience and more than 6,000 successful installation records.
For more information, click here
