Ground Water Treatment / Simple Water Supply

Ground Water Treatment / Simple Water Supply
Occasionally, using underground water incurs less cost than relying on public water supplies.    The range of usage for underground water is generally wide, from industrial purposes to simple drinking water.

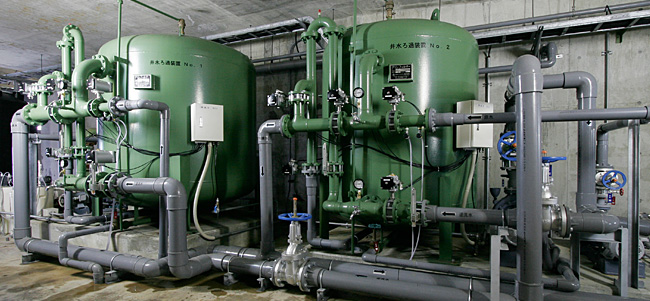

Aqua Product Corporation offers efficient filtration systems for river water, spring water, and underground water.
Characteristics
  • High quality water can be acquired through the arrangement of multiple filtering layers.
  • SS is less than 5mg/litter
  • Equipped with automatic reverse wash-off device.
Main expendables for this system
  • Chlorination supply device
  • Coagulation aid supply (polymer) device
  • Water quality monitor
Model
AM-003(A)〜090(A)

Purposes

  • removal of iron and manganese
  • Drinkable water

ModelItem Filtration
capability
Filtering
Area
Pump Piping Installation
Spaces
Weight
(under operation)
m³/h kW In and Out(mm) depth x width x height(cm) kg
AM-003(A) ~3 0.14 0.4 40 160×160×200 280
AM-005(A) ~5 0.26 0.4 40 170×180×200 720
AM-009(A) ~9 0.78 0.75 65 335×285×250 2,550
AM-015(A) ~15 1.13 2.2 80 335×285×260 3,750
AM-025(A) ~25 1.32 2.2 80 345×295×260 4,400
AM-040(A) ~40 2.01 3.7 100 425×335×270 6,700
AM-055(A) ~55 3.14 5.5 125 465×405×290 10,500
AM-090(A) ~90 4.15 7.5 150 495×465×300 14,700
AQUA PRODUCT is a leading swimming pool designer/builder in Japan with over 40 years experience and more than 6,000 successful installation records.
For more information, click here
