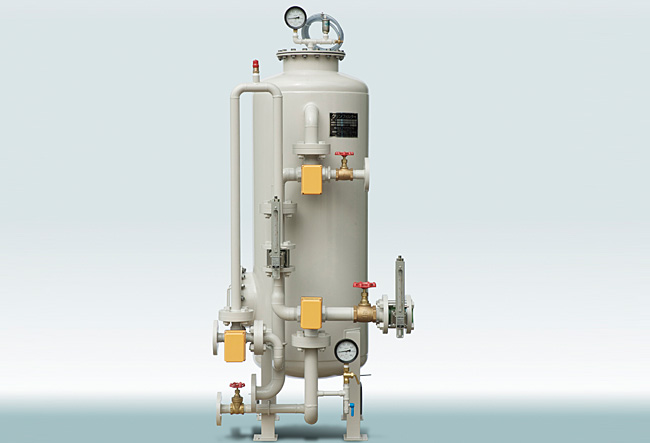

Rain Water Treatment

Rain Water Treatment
Aqua Product Corporation offers new water supply system using rain water.
Characteristics
  • Collecting high quality water
  • Saving space for this purpose
  • High efficiency in processed water use
  • Equipped with automatic reverse wash-off device and rain amount measurement
Main expendables for this system
  • Tank for rain water
  • Rain amount measurement
  • Screens
Model
AM-003(A)〜090(A)

Purposes

  • removal of iron and manganese
  • Drinkable water

ModelItem Filtration
capability
Filtering
Area
Pump Piping Installation
Spaces
Weight
(under operation)
m³/h kW In and Out(mm) depth x width x height(cm) kg
AM-003(A) ~3 0.14 0.4 40 160×160×200 280
AM-005(A) ~5 0.26 0.4 40 170×180×200 720
AM-009(A) ~9 0.78 0.75 65 335×285×250 2,550
AM-015(A) ~15 1.13 2.2 80 335×285×260 3,750
AM-025(A) ~25 1.32 2.2 80 345×295×260 4,400
AM-040(A) ~40 2.01 3.7 100 425×335×270 6,700
AM-055(A) ~55 3.14 5.5 125 465×405×290 10,500
AM-090(A) ~90 4.15 7.5 150 495×465×300 14,700
AQUA PRODUCT is a leading swimming pool designer/builder in Japan with over 40 years experience and more than 6,000 successful installation records.
